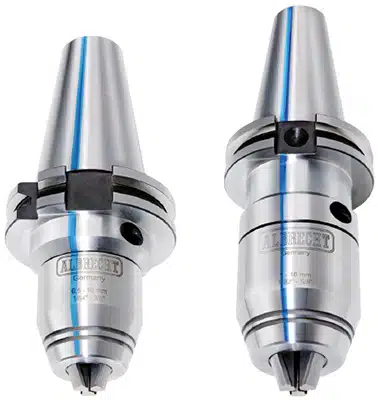

Albrecht Key-Lock Precision CNC Drill Chucks
- New, compact design provides increased capacity and better clearance.
- Extremely accurate – Albrecht Key-Lock Drill Chucks are the most accurate drill chucks available.
- Unique worm/gear arrangement is similar to the Überchuck and transmits extremely high gripping force to the jaws.
- Short length and integral shank provide exceptional rigidity.

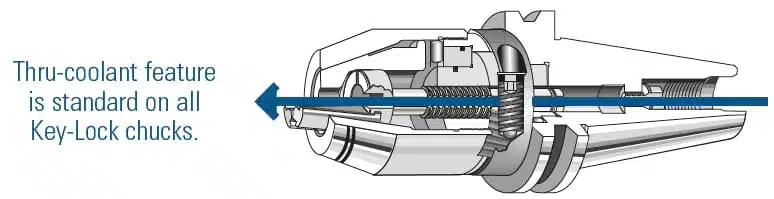

- Thru-coolant feature is standard on all Albrecht Key-Lock Drill Chucks.
- Non-rotating hood – chuck is opened and closed via a hex key inserted into the side of the body.
- Balanced to G2.5 @ 20,000 rpm for use on all CNC machines.
- Can be operated in both clockwise and counterclockwise directions.
The key-operated worm and gear assembly generates very high grip force and ensures that the chuck can’t loosen during operation because a worm can drive a gear, but a gear cannot drive a worm.
Albrecht Wrench-Lock CNC Drill Chucks
Filters
Sort results
Reset
Apply

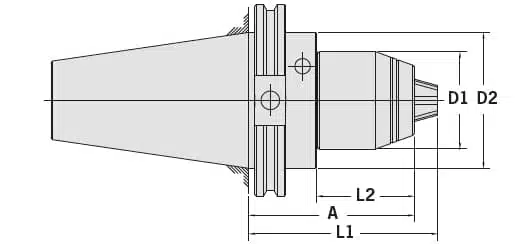

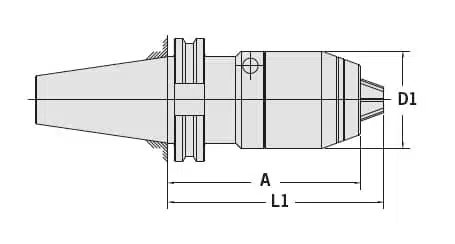

Chuck Model | Capacity (inches) | Capacity (millimeters) | THRU-HOLE DIA. | CHUCK MOUNT | TAPER | Shank Type | A | D | L1 | L2 | D1 | D2 | Thread | Maximum RPM | Weight (lbs.) | PART NUMBER | PRICE | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KL100-CAT40 |
1⁄64 - 3⁄8 |
0.5 - 10 |
CAT 40 |
2.72 |
3.39 |
1.48 |
1.50 |
1.75 |
2.8 |
$847.00
|
||||||||
KL160-HSK 63 Form A |
1⁄32 - 5⁄8 |
1 - 16 |
HSK 63 Form A |
3.86 |
4.33 |
1.97 |
3.4 |
$858.00
|
||||||||||
KL160-CAT40 |
1⁄32 - 5⁄8 |
1 - 16 |
CAT 40 |
3.90 |
4.37 |
1.97 |
2.7 |
$776.00
|
||||||||||
KL160-CAT50 |
1⁄32 - 5⁄8 |
1 - 16 |
CAT 50 |
3.31 |
3.78 |
1.93 |
1.97 |
2.76 |
7.9 |
$1,045.00
|
||||||||
KL160-HSK 63 Form F |
1⁄32 - 5⁄8 |
1 - 16 |
HSK 63 Form F |
3.86 |
4.33 |
1.97 |
3.5 |
$1,035.00
|
Note – Other tapers available. Please contact us for additional information.
